Brinell Test Blocks
Features
- Tested as per ISO 6506-1, IS 1500 (Part 1) and/or ASTM E10
- Tested at Fmi Testing Laboratory, NABL accredited (ISO/IEC 17025:2017)
- Specially curated high-quality steel, aluminium and brass material
- Specially designed heat treatment and cryogenic treatment to achieve maximum long term hardness stability, consistency and repeatability
- Superior surface finish by grinding.
- LASER marking on the surface of hardness value, Serial number and company logo

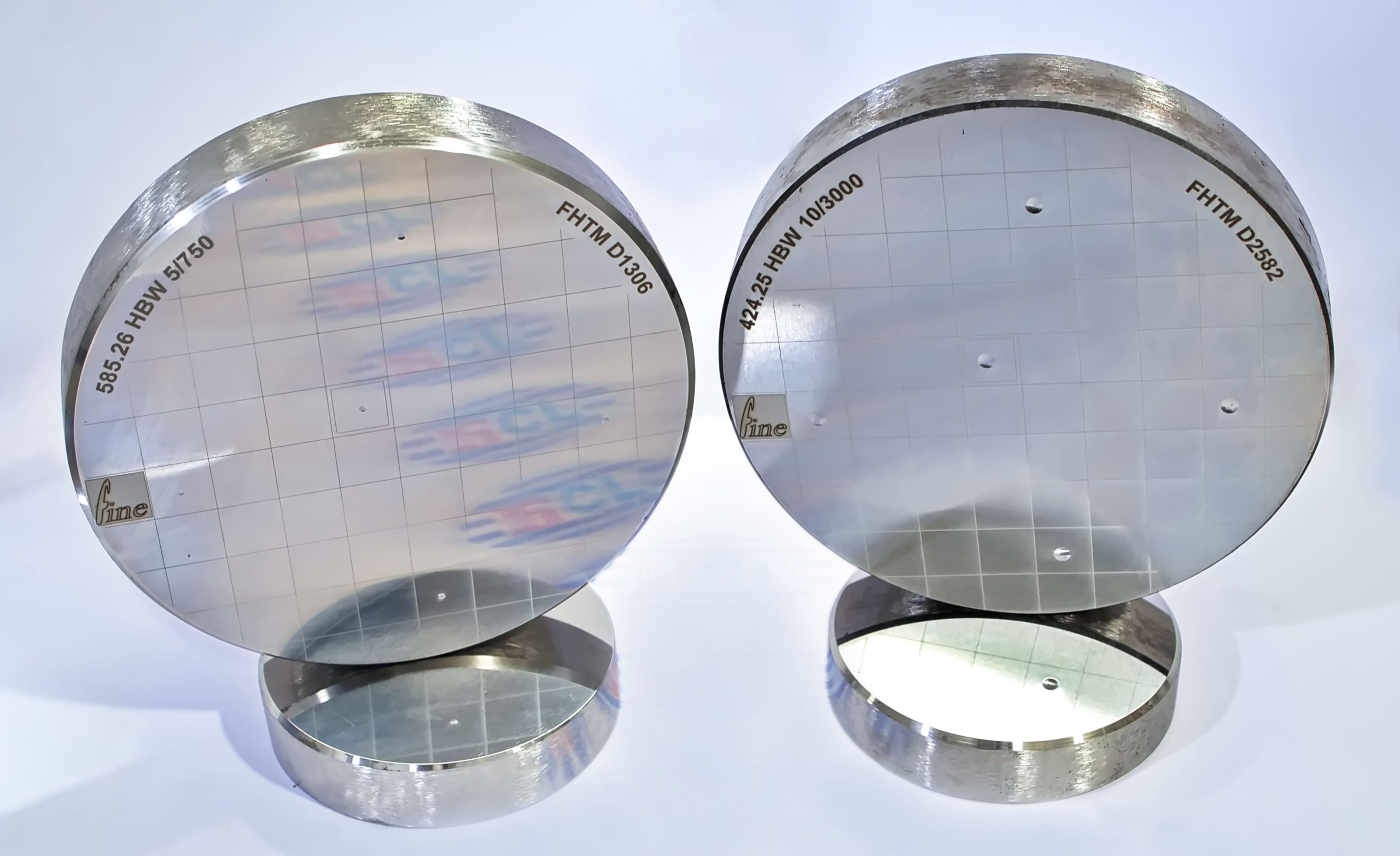

- Square LASER grid marking for steel blocks
- Available in shapes: Φ105 mm, Φ64 mm and Φ50 mm
- Recommended key usage: Periodic/daily intermediate checks as a secondary reference block.
Available hardness scales and ranges as below
Standard Brinell Test Blocks | ||
Scale | Hardness Range | Material / Size |
HBW 2.5/187.5 | 100-150, 150-200, 200-250, 250-300, 300-350, 350-400, 400-500, 500-600 HB | Steel / Dia 50 & 64 mm |
HBW 5/750 | 100-150, 150-200, 200-250, 250-300, 300-350, 350-400, 400-500, 500-600 HB | Aluminium / Dia 105 mm |
HBW 10/3000 | 100-150, 150-200, 200-250, 250-300, 300-350, 350-400, 400-500, 500-600 HB | Aluminium / Dia 105 mm |

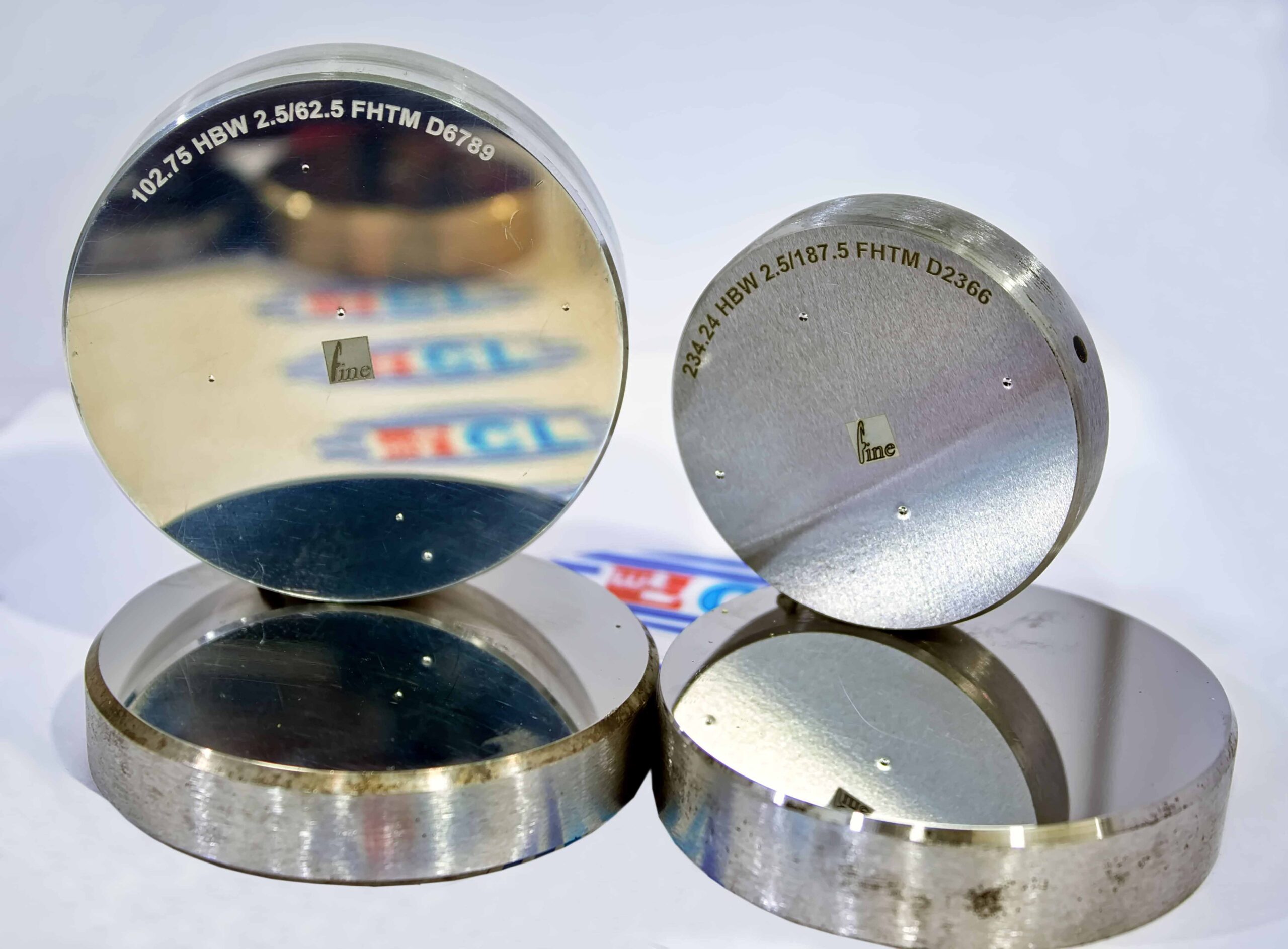

HBW 2.5/62.5 | 90-120 HB | Aluminium / Dia 50 & 64 mm |
HBW 5/250 | 90-120 HB | Aluminium / Dia 100 mm |
HBW 10/500 | 90-120 HB | Aluminium / Dia 100 mm |

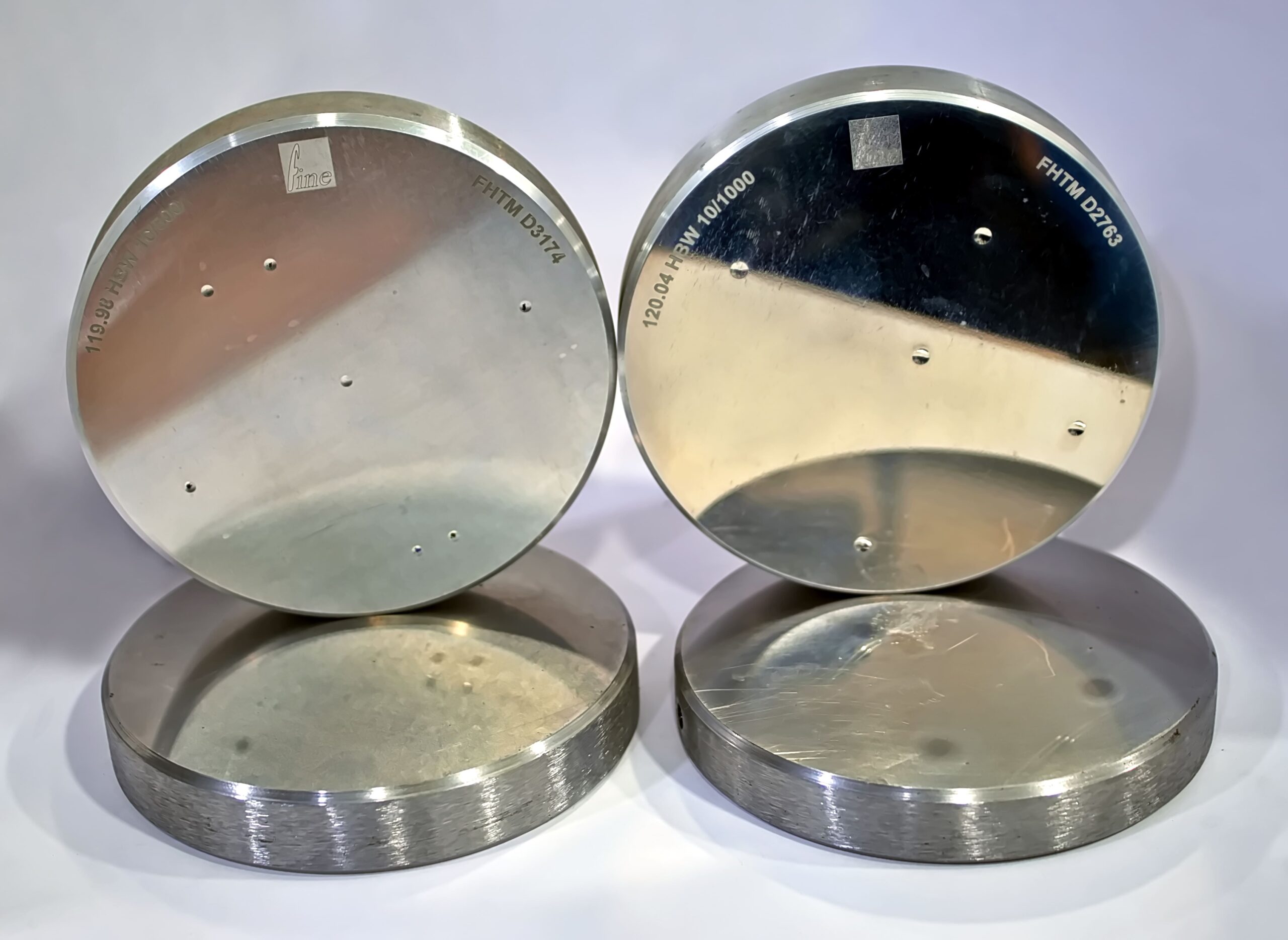

HBW 10/1000 | 90-120 HB | Aluminium / Dia 100 mm |
